The color stone metal tile can meet the large slope roof arc roof construction requirements, and the metal tile has small self-weight and convenient vertical transportation, small construction loss, short construction period, high safety performance, suitable for the large slope roof and arc roof construction, can very well meet the requirements of high quality modeling complex roof construction.
Stone metal tile lap way
The laps of the coloured stone tiles can be left to right or right to left, and are interlocked.However, the lap joint should be away from the prevailing wind direction, rainwater flow direction or rainwater drain pipe and roof gutter.Shop outfit sequence is laid from cornice commonly from bottom to top to roof ridge place.
Fixed with colored stone and metal tile
In the front edge of the colored stone metal tile, use the installation nail to fix the colored stone metal tile on the hanging tile, two pieces of tile about lap, in the center of the covered colored stone metal tile lap tile arc near the covered metal tile 60mm place to hit the nail fixed.Each tile shall be fixed by seven mounting nails.
Color stone metal tile laying nailing technology

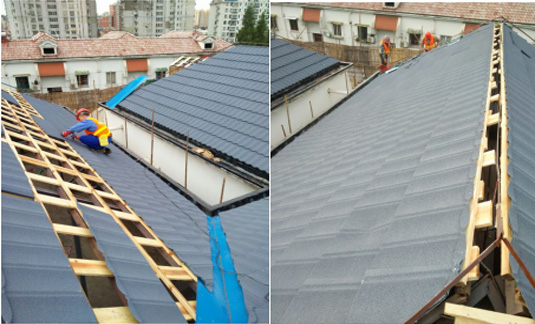

When installing, you should stand at the wooden keel of tile lapping, facing the cornice, and nail the fixed tile. The nail gun can also fix the tile.
Steps for installing the roof at the gable with colored stone and metal tiles
Starting from the second row at the top of the roof, install coloured stone metal shingles laterally from one end of the gable to the other.The tiles at the side of the gable should be bent and secured to the hill wallboard.After the tiles are temporarily fixed, lay the rear right on the hanging tile. From this row of already laid tiles, lay the next row of tiles from one end of the gable to the other transverse.After two rows of tiles are laid, fix them with nails.If the lap joints of the tiles are staggered, the cut tiles will be used on the gable side to improve the appearance of the gable.
Steps for installation of roof with stone and metal tiles on inclined roof ridge
On the second row at the top of the roof, the tile is laid 150mm away from the inclined roof ridge board and then continues to the other end until a complete piece of colored stone metal tile is laid.Make sure that the back edge of the tile is firmly fixed. Install only two rows of tiles downwards at a time. The starting position is the same.
Color stone metal tile shop for the roof and vertical wall of the handover, should be the wall side of the tile bending, water edge to cover it, from the vertical wall near a complete tile to the vertical wall distance, to determine the bending line.Plus 40mm for the cutting line.Cut and bend tiles
Stone metal tile shop ridge tile installation, should follow the high frequency wind direction lap, and should fully cover the two slope stone metal tile, lap width should not be less than 50mm..
Eaves to be straight, ridge tile and ridge tile gap and flat tile, diagonal trench tile and the gap of the drainage ditch, are filled with hemp mortar smooth, sealed tight.
Hanging tile should be flat, lapping tight, horizontal and vertical, a row of roof ridge tile should hang the whole tile, eaves tile size consistent, eaves straight neat.Flat roof tiles shall not have missing corners, sand holes, cracks, and warping mouth defects.The laid roof shall not be permeable (can be checked after rainy days).
